Electrical safety is the backbone of any residential, commercial, or industrial power system. Whether you are designing a new installation or upgrading an existing one, selecting the right protection device is critical. Two of the most widely used circuit protection devices are the Miniature Circuit Breaker and the moulded case circuit breaker. While both serve the purpose of protecting electrical circuits from overloads and short circuits, they are designed for different applications and power capacities.
This complete buyer’s guide will help you understand their features, differences, applications, and how to choose the right one for your specific needs.
Understanding the Role of Circuit Breakers
Circuit breakers are automatic electrical switches designed to protect circuits from damage caused by overcurrent, short circuits, and faults. When abnormal current flows through the system, the breaker trips and disconnects the power supply, preventing equipment damage, fire hazards, and costly downtime.
Both Miniature Circuit Breaker and moulded case circuit breaker devices perform this essential protective function, but their capacity and usage scenarios differ significantly.
What is a Miniature Circuit Breaker?
A Miniature Circuit Breaker (MCB) is a compact protective device commonly used in residential and light commercial electrical systems. It automatically switches off electrical circuits during overload or short circuit conditions.
Key Features of a Miniature Circuit Breaker
- Designed for low current ratings (typically up to 125A)
- Compact size suitable for distribution boards
- Fixed trip settings
- Easy installation and replacement
- Quick reset after tripping
MCBs are widely used in homes, offices, small retail stores, and light industrial setups. They provide reliable protection for lighting circuits, power outlets, and small equipment.
Types of Miniature Circuit Breakers
MCBs are categorized based on their trip characteristics:
- Type B: Suitable for residential applications
- Type C: Used in commercial environments with moderate inrush currents
- Type D: Designed for industrial loads with high starting currents
Understanding these trip curves is essential when selecting the right breaker for your load requirements.

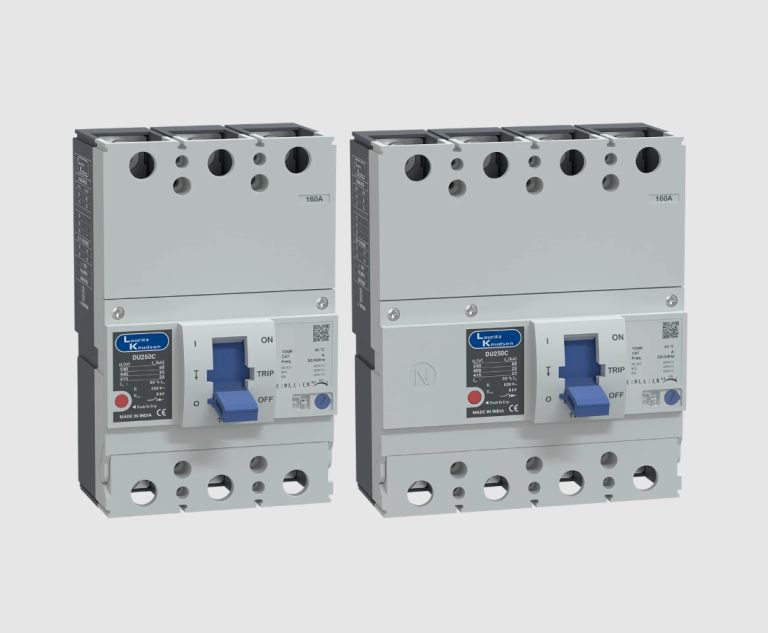

What is a Moulded Case Circuit Breaker?
A moulded case circuit breaker(MCCB) is a heavy-duty protection device designed for higher current ratings and more demanding applications. It is typically used in industrial facilities and large commercial buildings.
Key Features of a Moulded Case Circuit Breaker
- Higher current capacity (typically from 100A to 2500A or more)
- Adjustable trip settings
- Greater breaking capacity
- Enhanced fault protection
- Durable construction for industrial environments
MCCBs offer greater flexibility compared to MCBs because their trip settings can be adjusted to match system requirements. This makes them ideal for complex electrical networks.
Key Differences Between Miniature Circuit Breaker and Moulded Case Circuit Breaker
Understanding the differences between a Miniature Circuit Breaker and a moulded case circuit breaker helps buyers make informed decisions.
1. Current Rating
MCBs are suitable for low to medium current loads, while MCCBs are designed for high-current industrial applications.
2. Breaking Capacity
MCCBs generally have a higher breaking capacity, allowing them to interrupt larger fault currents safely.
3. Adjustability
MCBs usually have fixed trip settings, whereas MCCBs allow adjustable trip parameters for better customization.
4. Application Scope
MCBs are ideal for residential and small commercial installations. MCCBs are used in factories, large buildings, and heavy machinery systems.
5. Size and Installation
MCBs are smaller and fit easily into standard distribution boards. MCCBs are larger and require more installation space.
Factors to Consider When Buying a Miniature Circuit Breaker
When selecting a Miniature Circuit Breaker, consider the following:
Load Requirement
Calculate the total connected load to determine the appropriate current rating.
Trip Curve Type
Select Type B, C, or D based on your equipment’s starting current characteristics.
Breaking Capacity
Ensure the breaker’s breaking capacity matches or exceeds the potential fault level of the installation.
Compliance and Certification
Choose products that meet national and international safety standards to ensure reliability.
Factors to Consider When Buying a Moulded Case Circuit Breaker
Purchasing a moulded case circuit breaker requires careful technical evaluation.
Rated Current and Voltage
Ensure the MCCB is rated appropriately for your system voltage and current.
Adjustable Trip Settings
Look for models with adjustable overload and short circuit protection to match operational needs.
Interrupting Capacity
High fault current environments demand higher interrupting capacities.
Mounting and Space Requirements
Consider panel design and available installation space before purchasing.
Application Scenarios
Residential Applications
Homes typically use Miniature Circuit Breaker units in distribution boards for lighting, fans, air conditioners, and household appliances.
Commercial Buildings
Offices, shopping complexes, and educational institutions may use both MCBs and MCCBs depending on the load distribution.
Industrial Facilities
Manufacturing plants and heavy industries rely on moulded case circuit breaker devices for protecting high-powered motors, generators, and distribution panels.
Advantages of Using the Right Circuit Breaker
Choosing the correct protection device offers several benefits:
- Improved electrical safety
- Reduced risk of fire hazards
- Enhanced system reliability
- Lower maintenance costs
- Increased equipment lifespan
An incorrectly selected breaker may result in nuisance tripping or insufficient protection, leading to operational inefficiencies.
Installation and Maintenance Tips
Proper installation and routine maintenance are crucial for optimal performance.
- Always follow the manufacturer’s installation guidelines.
- Ensure tight and secure terminal connections.
- Conduct periodic inspections for overheating or wear.
- Test tripping mechanisms regularly.
- Replace outdated or damaged breakers promptly.
Professional installation is highly recommended, especially for MCCBs in industrial systems.
Future Trends in Circuit Protection
Modern circuit breakers are becoming smarter with digital monitoring, remote control capabilities, and advanced protection features. As electrical systems grow more complex, both Miniature Circuit Breaker and moulded case circuit breaker technologies continue to evolve to meet higher efficiency and safety standards.
Smart energy management systems now integrate advanced breakers for better fault detection and real-time performance monitoring.
Making the Final Decision
When deciding between a Miniature Circuit Breaker and a moulded case circuit breaker, the primary factors to consider are load capacity, application type, and system complexity. For smaller installations with limited power demand, MCBs offer a cost-effective and reliable solution. For larger and more demanding environments, MCCBs provide superior protection and customization options.
Consulting with an experienced electrical engineer or supplier can help ensure you select the most suitable breaker for your system.
Conclusion
Electrical protection is not an area where compromises should be made. Both Miniature Circuit Breaker and moulded case circuit breaker devices play vital roles in safeguarding electrical systems across residential, commercial, and industrial applications. Understanding their differences, capabilities, and selection criteria empowers buyers to make informed, safe, and cost-effective decisions.
For organizations seeking reliable and high-performance circuit protection solutions, Lauritz Knudsen offers advanced electrical components engineered to meet modern safety standards and industrial demands. Investing in trusted technology today ensures long-term safety, efficiency, and operational continuity.
