As IoT devices become more intelligent, visual sensing is moving from an optional feature to an important part of many connected products. Smart-home equipment, compact robots, monitoring devices and industrial systems increasingly need cameras capable of capturing detailed images while fitting into limited internal space.
For OEM developers, this creates an important challenge. A camera must provide sufficient image quality without making the final product unnecessarily large or difficult to integrate.
An IoT 4K Sony camera module can provide a strong foundation for these applications by combining high-resolution imaging with a compact MIPI architecture.

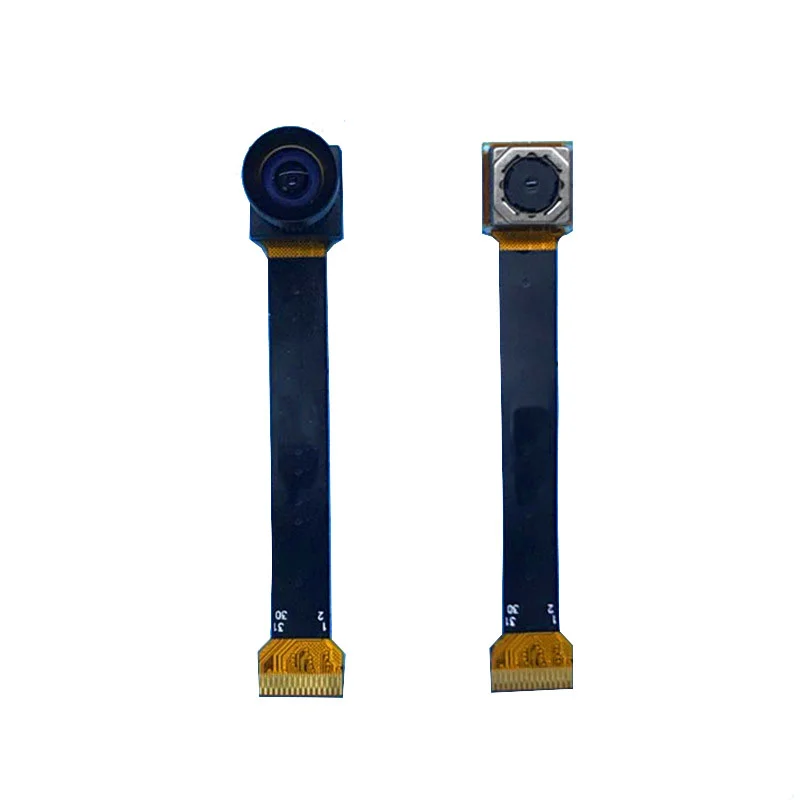

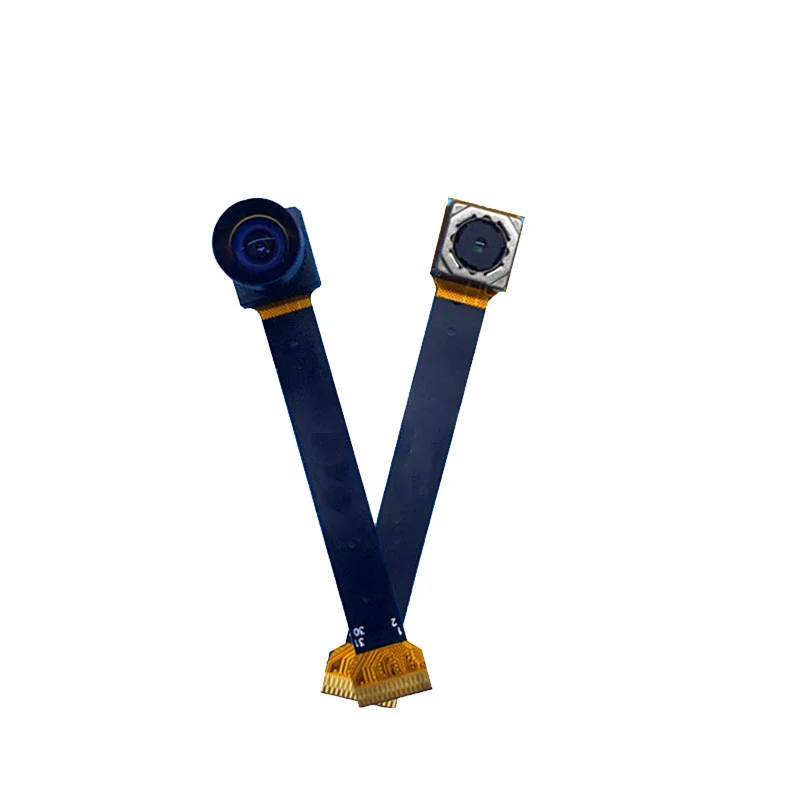

CBRITECH’s 12MP Sony IMX362 MIPI Camera Module is built around a 1/2.55-inch Sony IMX362 CMOS sensor and provides 4000×3000 resolution at 30fps. Its compact design, MIPI interface and wide-angle optical options make it suitable for OEM products requiring high-resolution embedded imaging.
Why High-Resolution Imaging Matters for IoT Devices
Traditional IoT devices primarily collected information from sensors measuring parameters such as movement, temperature or environmental conditions.
Adding visual input significantly expands what a connected device can observe.
A smart-home product can incorporate visual monitoring. A robot can use camera data as part of its perception system. An industrial device can capture detailed images for monitoring or analysis. A motion camera can record visual information when specific events occur.
But these applications need more than simply “a camera.”
The imaging system must provide enough detail for the intended task while remaining compatible with the processor, available bandwidth and physical design.
The Sony IMX362 module provides 4000×3000 resolution at 30fps, giving developers a 12MP imaging platform for applications where higher image detail is important.
Understanding the Sony IMX362 Camera Architecture
The image sensor is one of the most important components in any camera module.
CBRITECH’s module uses a 1/2.55-inch Sony IMX362 CMOS sensor. The product is categorized within both the company’s CMOS Sensor Camera Module and MIPI Camera Module ranges.
For an OEM, sensor selection should be considered alongside optics, interface, processor compatibility and the required image-processing pipeline.
A high-resolution sensor produces more image information, but that information must still be transferred and processed effectively by the host system.
Developers comparing different sensor and resolution combinations can review CBRITECH’s broader CMOS Sensor Camera Module range.
Why MIPI Is Important for Embedded Vision
The module uses a 30-pin MIPI interface.
MIPI camera interfaces are commonly used where a camera needs to connect closely with an application processor inside an embedded system. Unlike a USB camera that generally behaves as a more independent peripheral, a MIPI camera becomes more directly integrated into the device’s imaging architecture.
This can be advantageous for compact embedded products because MIPI supports high-speed serial image transmission with relatively few signal lines. CBRITECH’s technical guidance also notes the low-voltage differential nature of MIPI and its resistance to interference.
However, MIPI compatibility should never be assumed from the connector alone.
OEM engineers need to verify processor support, pin assignment, lane configuration, voltage requirements, driver availability and image-processing compatibility before finalizing a camera.
CBRITECH’s MIPI Camera Module collection provides additional sensor and resolution options for developers working with embedded MIPI architectures.
Compact 10×10 mm Design
High resolution becomes particularly valuable when it can be delivered without requiring a large camera assembly.
CBRITECH specifies a 10×10 mm module size for the IMX362 camera, with a 74.5 mm FPC. The lens-mounted section is also listed at approximately 10×10 mm.
This compact footprint can benefit IoT and embedded products where PCB and enclosure space are limited.
For example, smart-home equipment often needs the camera to coexist with wireless hardware, processors, sensors, power electronics and other components inside a relatively small enclosure.
Small robots face similar constraints because cameras need to be positioned appropriately without adding unnecessary bulk to the mechanical design.
Wide-Angle Imaging for Smart Devices
Field of view determines how much of the environment the camera captures.
The IMX362 module supports a 120° diagonal field of view, while the product description also states that 80° and 120° lens options are supported.
A wide-angle configuration can be useful for smart devices that need to observe a larger area from a relatively short distance.
Potential applications include smart-home monitoring, robotics, motion cameras and other compact devices where broad scene coverage is more important than a narrow telephoto view.
However, OEM engineers should choose the lens according to the application rather than automatically selecting the widest option.
A wider lens captures more of the scene, but individual objects can occupy a smaller portion of the image. The correct balance depends on working distance, target size and the purpose of the captured image.
IoT 4K Camera Modules for Smart Home Systems
Smart-home products represent one of the applications specifically listed by CBRITECH for the IMX362 module.
A high-resolution embedded camera can provide visual input for products such as connected monitoring devices and other camera-enabled smart equipment.
The advantage of using a board-level camera module is design flexibility.
Rather than building the product around a finished external camera, an OEM can integrate the imaging hardware into its own enclosure and electronics architecture.
This allows the camera position, processor, software and overall user experience to be designed as one connected product.
Camera Modules for Small Robots
CBRITECH also identifies small robots as a target application.
Robotic systems often need visual information to understand their surroundings or provide remote viewing capabilities.
Depending on the complete platform, camera data might support environmental observation, object analysis, navigation-related development or other computer-vision workflows.
The combination of high resolution, compact module dimensions and a wide-angle lens can make the IMX362 architecture relevant where developers need detailed visual input without installing a comparatively large camera assembly.
The camera should still be selected as part of the complete robotic vision pipeline:
Environment → Lens → Sensor → MIPI Interface → Processor → Vision Software → System Response
Performance depends on every stage, not simply the sensor resolution.
Industrial and Motion Camera Applications
The product page also lists industry, motion camera and HD sports DV applications.
These use cases illustrate why a high-resolution compact camera can serve multiple product categories.
Industrial systems may value detailed visual information and compact integration, while motion or sports-camera designs may prioritize physical size, field of view and image capture performance.
The final configuration should therefore be validated under realistic operating conditions.
Resolution, lighting, movement, optics and processing capability can all influence actual image quality.
Fixed Focus and Optical Configuration
CBRITECH lists the standard module as fixed focus, with an objective distance of approximately 60 cm. The page also notes autofocus selection among the available features.
This is important for OEM development because focus requirements depend heavily on the application.
A smart device observing a relatively predictable scene may work well with fixed focus. Other products may require a different focus arrangement depending on working distance and target movement.
Focus type should therefore be defined before the mechanical and optical design is finalized.
What OEM Buyers Should Check Before Selecting a 4K MIPI Camera
A 12MP specification alone should never determine the purchasing decision.
OEM teams should first confirm whether the host processor can support the IMX362 sensor and required MIPI architecture. They should then evaluate resolution, frame rate, lens, field of view, focus requirements, FPC dimensions and available enclosure space.
The module’s 10×10 mm dimensions, 74.5 mm FPC, 30-pin MIPI interface, 120° DFOV and 4000×3000@30fps output should all be checked against the intended system architecture.
For production projects, manufacturers should also consider technical documentation, prototyping, quality control and customization requirements. CBRITECH states that it provides OEM/ODM support, technical data and inspection services for camera-module projects.
Building Smarter Products with High-Resolution Embedded Vision
The value of an IoT 4K Sony camera module is not simply the ability to capture a larger image.
Its real value comes from combining detailed visual information with an architecture that can be incorporated directly into a connected product.
For smart-home devices, robotics, motion cameras and industrial equipment, that means developers can build imaging around the requirements of the finished device rather than treating the camera as an external accessory.
CBRITECH’s Sony IMX362 module combines 12MP resolution, 4000×3000@30fps imaging, a 1/2.55-inch Sony sensor, compact 10×10 mm dimensions, a MIPI interface and wide-angle lens options for this purpose.
For OEM developers, the next step should be to verify processor compatibility, optics, working distance, FPC design and mechanical integration before moving from evaluation to production.
